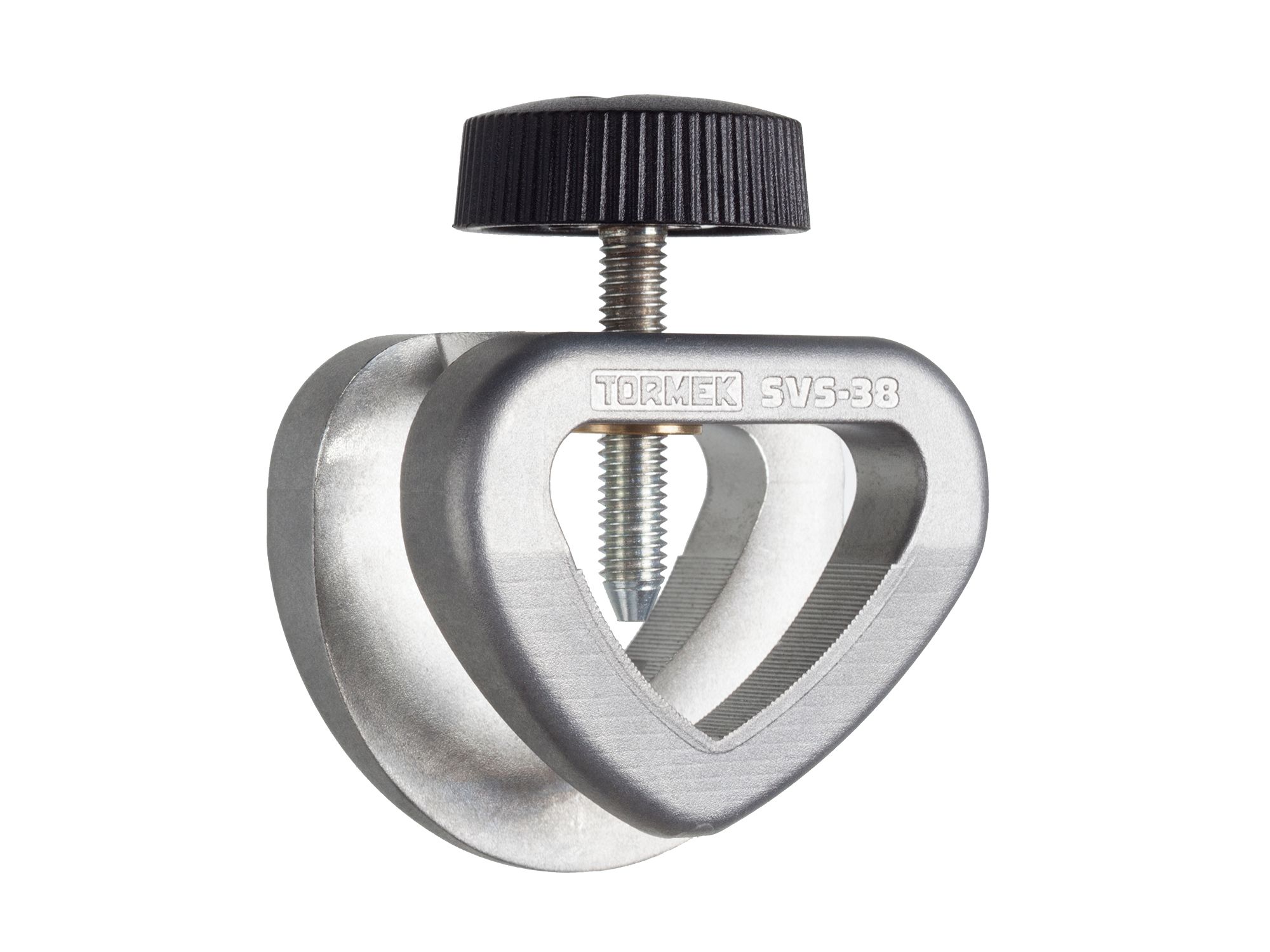

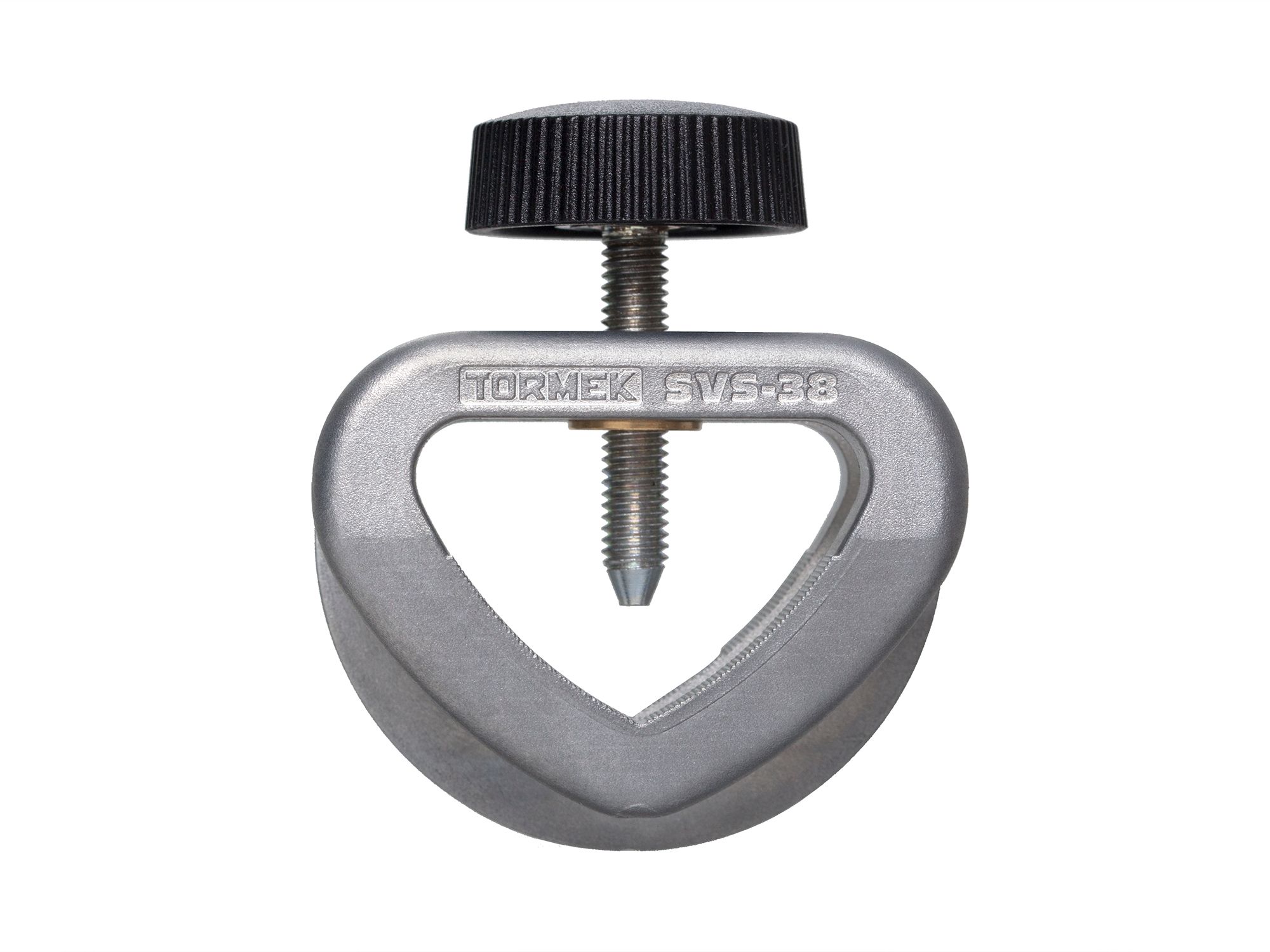

Short Tool Jig
The SVS-38 Short Tool Jig has been developed especially for short carving tools, short chisels, tools for electric sculpturing machines and smaller, straight gouges. Keen amateurs can even sharpen their damaged flat-head screwdrivers and chisels with this simple and versatile jig!
Why SVS-38 Short Tool Jig?
- Precise sharpening of your short carving tools.
- User-friendly jig that provides very stable sharpening.
- Works with both Tormek T-4 and Tormek T-8, as well as older models.
Stable and easy sharpening

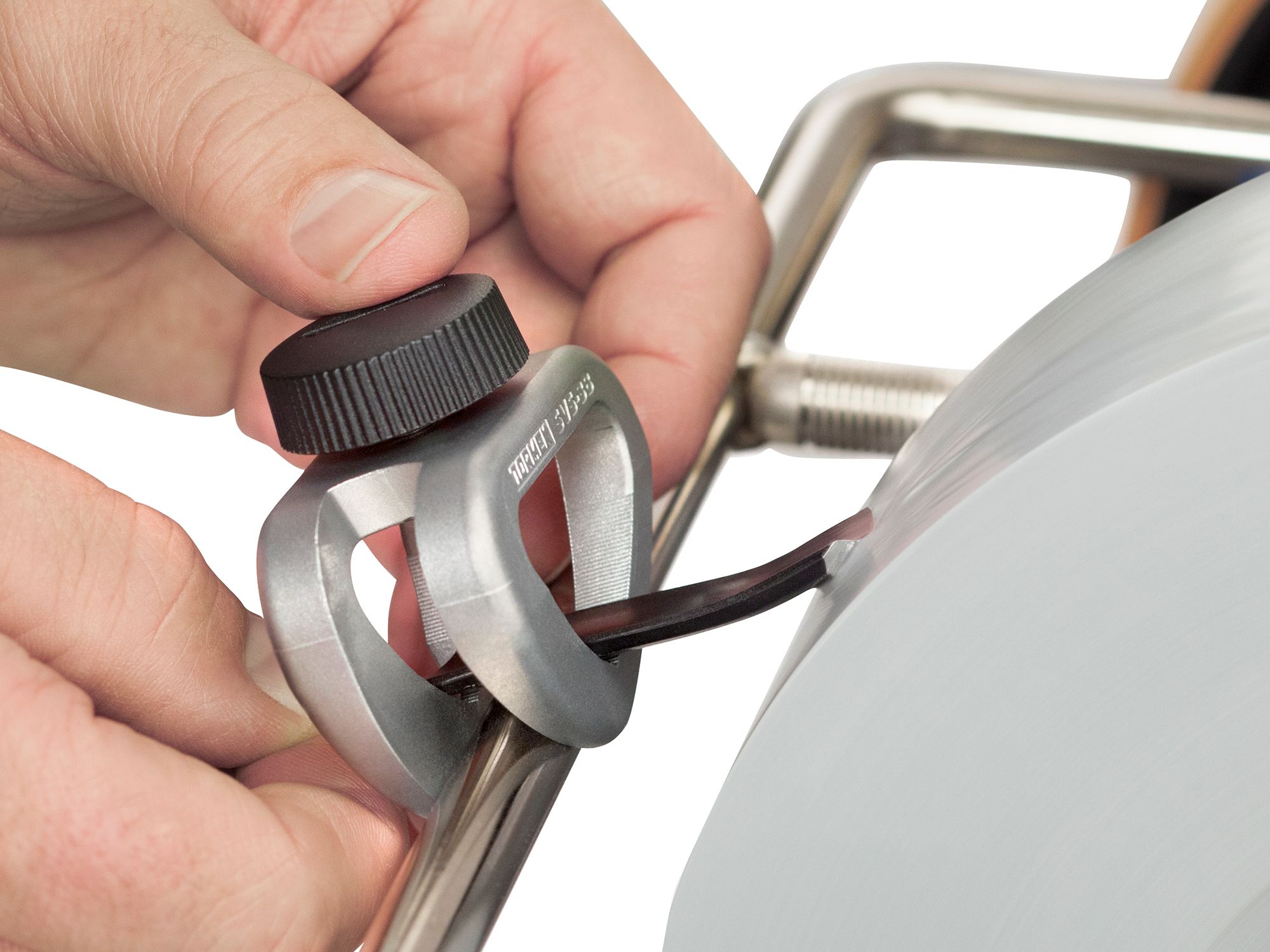

The SVS-38 Short Tool Jig has two parallel flanges that guide on both sides of the universal support. The design makes this jig extremely stable, and the tool always stays perpendicular to the grinding wheel even when you turn it. The design is a great advantage, as you can concentrate on sharpening or honing at all times without having to worry about whether your tool is perpendicular. The minimum tool length is 45 mm (1.77") at a 20° sharpening angle, and the maximum width is 38 mm (1.5").
Weight
Shipping weight 0.17 kg (0.37 lb)
Color
Gray/black
Material
Precision-cast zinc, black composite
Warranty
2-year warranty
Documents
Instructions SVS-38 ENPdf, 1.4 MB.
Parts breakdown SVS-38 ENPdf, 78.5 kB.
Patents
To see all patents, please visit tormek.com/patents
