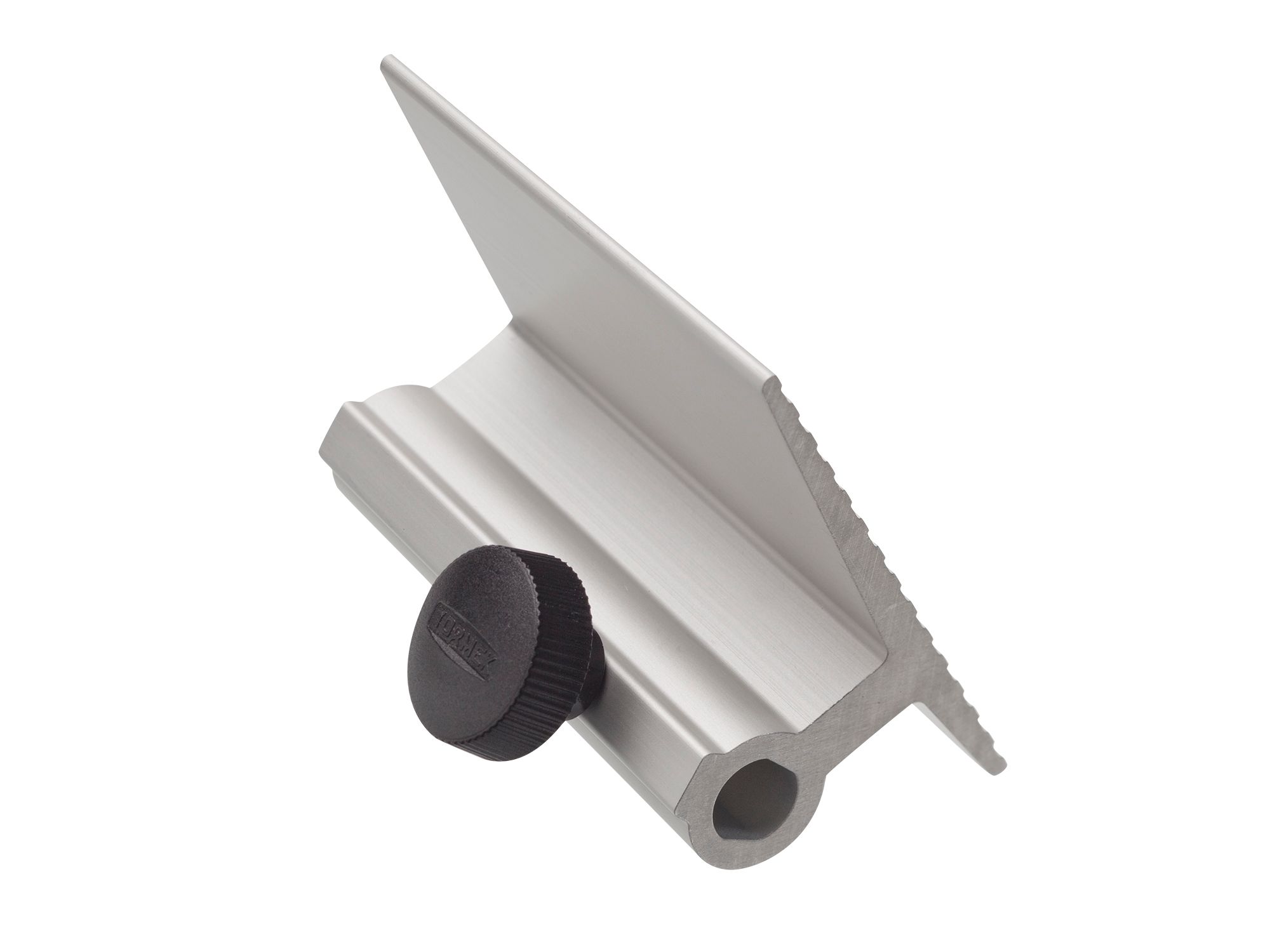

Tool Rest with Torlock
This tool rest gives you a larger support surface from the universal support. It's ideal for sharpening various rounded scrapers for woodturning. The SVD-110 Tool Rest also works perfectly with special woodcarving tools such as hollowing tools and curved drawing knives. You can also use it for card scrapers and cutting blades for woodturning tools, spokeshave and flat-head screwdrivers.
Why SVD-110 Tool Rest?
- Make your scrapers sharper than when they were new.
- Really easy to set up and use.
- Versatile jig that can be set to sharpen a variety of tools.
- Works with both Tormek T-4 and Tormek T-8, as well as older models.
Designed for stability

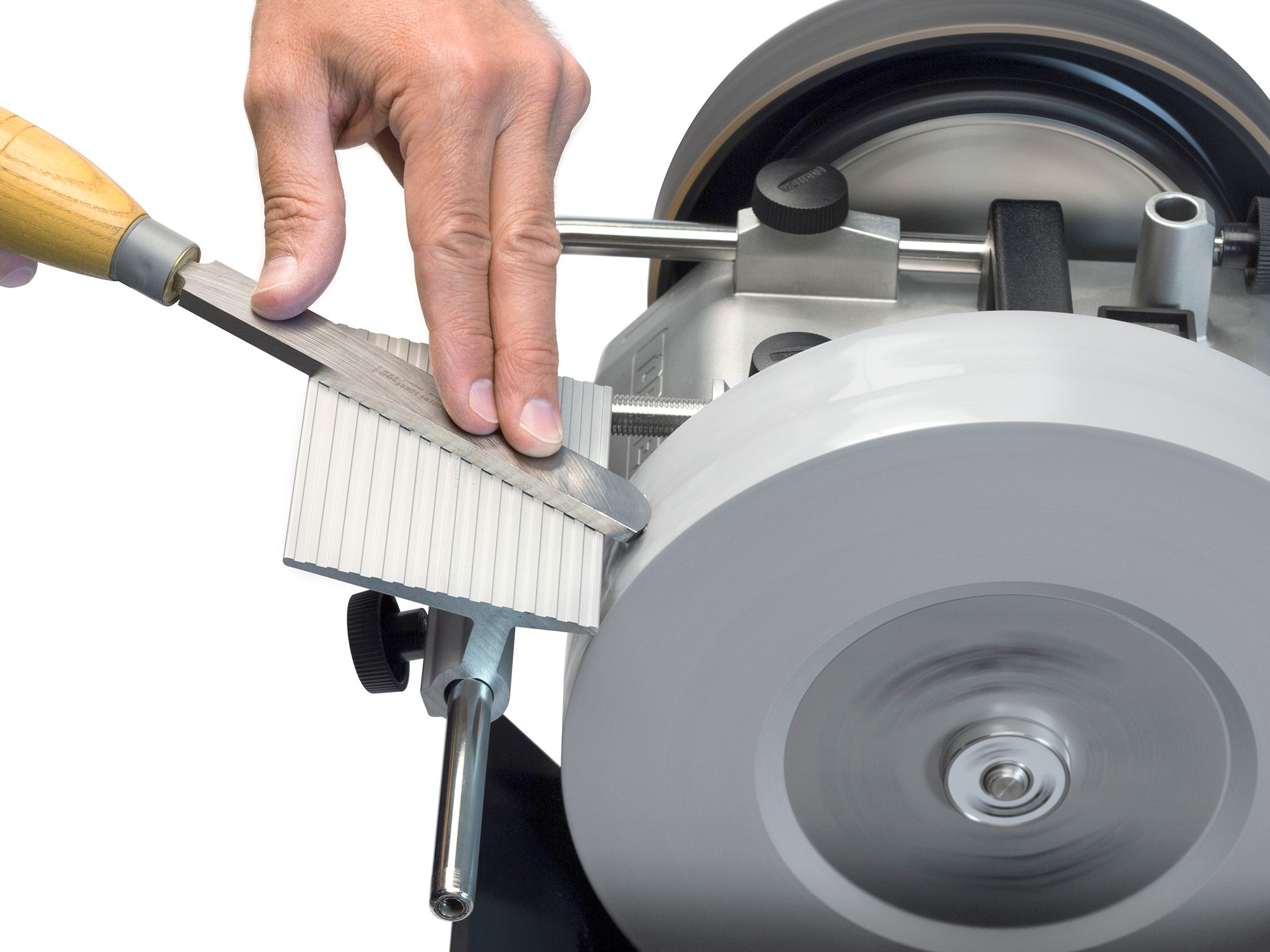

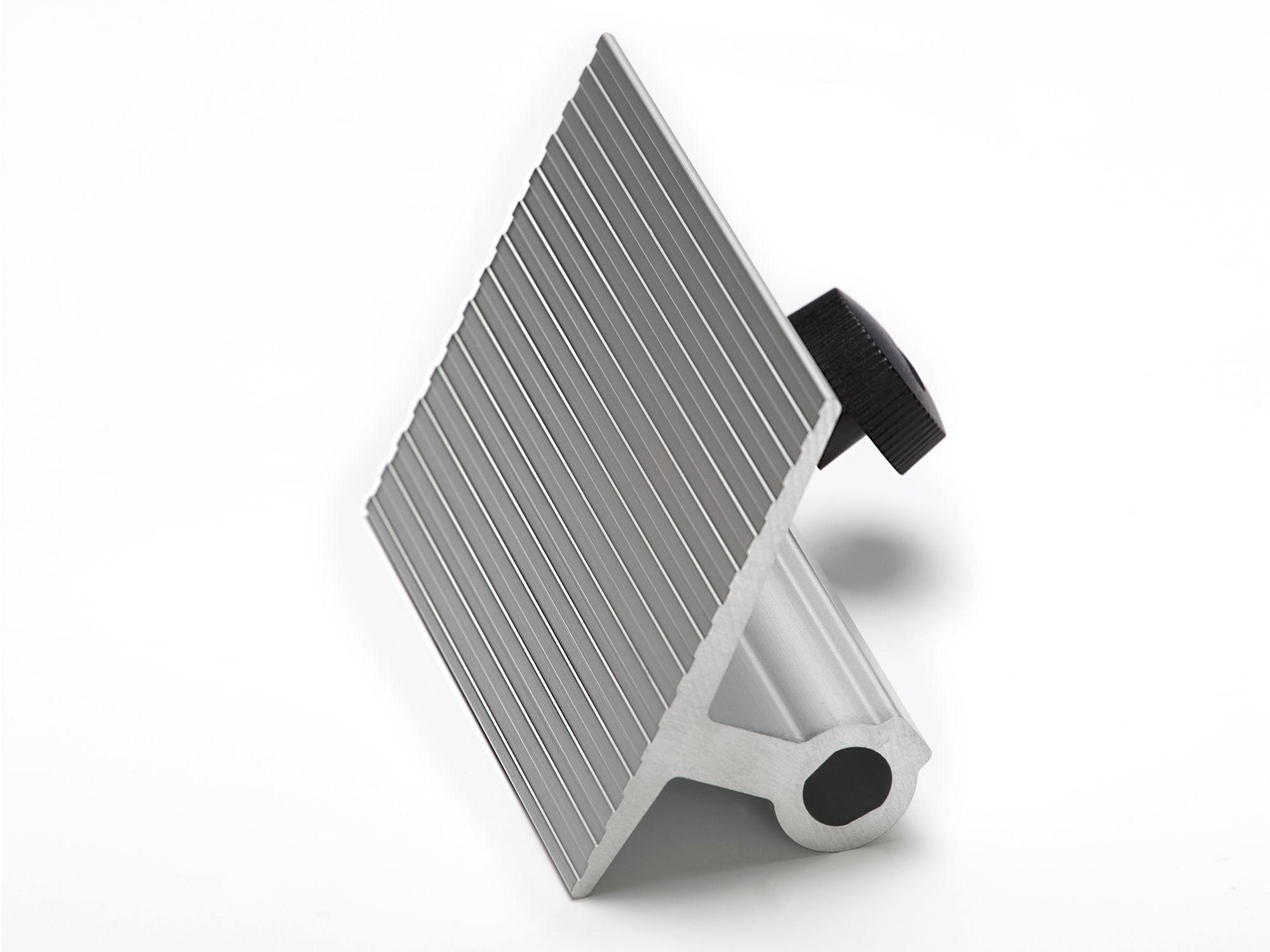

Scrapers often have a fairly large angle, which can make sharpening hard to control. That's why the SVD-110 Tool Rest has a generous 90×110 mm (3 1/2" × 4 3/8") surface area, allowing you to hold the tool firmly and securely against the grinding wheel. The hole where you attach the tool rest has a special wedge shape which increases the locking force by as much as 250% compared to a round hole. You can lock the tool rest instantly at the selected angle. The unique TorLock design is patented by Tormek.
Simple but versatile

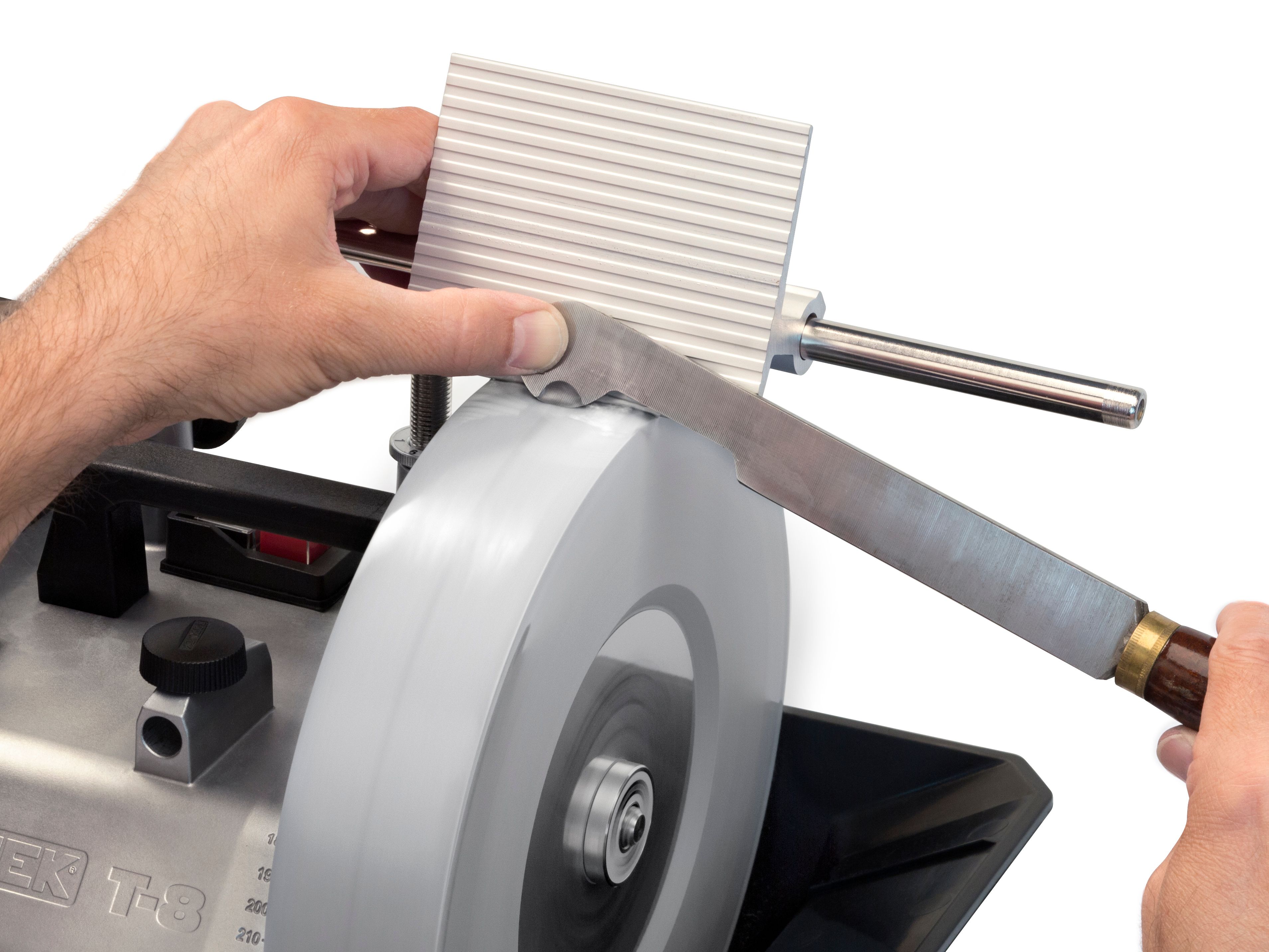

The SVD-110 Tool Rest can be used both with and against the direction of rotation of the grinding wheel. It can also be positioned so that you can use the flat side of the grinding wheel when sharpening card scrapers, for example. Many hard-to-sharpen tools that don't fit in any other jig or have unusual sharpening angles can be sharpened using the SVD-110 Tool Rest, in a number of other positions with a little creativity.
Weight
Shipping weight 0.27 kg (0.59 lb)
Color
Gray/black
Material
Aluminum, black composite
Warranty
2-year warranty
Documents
Instructions SVD-110 ENPdf, 749.6 kB.
Parts breakdown SVD-110 ENPdf, 14.4 kB.
Patents
To see all patents, please visit tormek.com/patents
