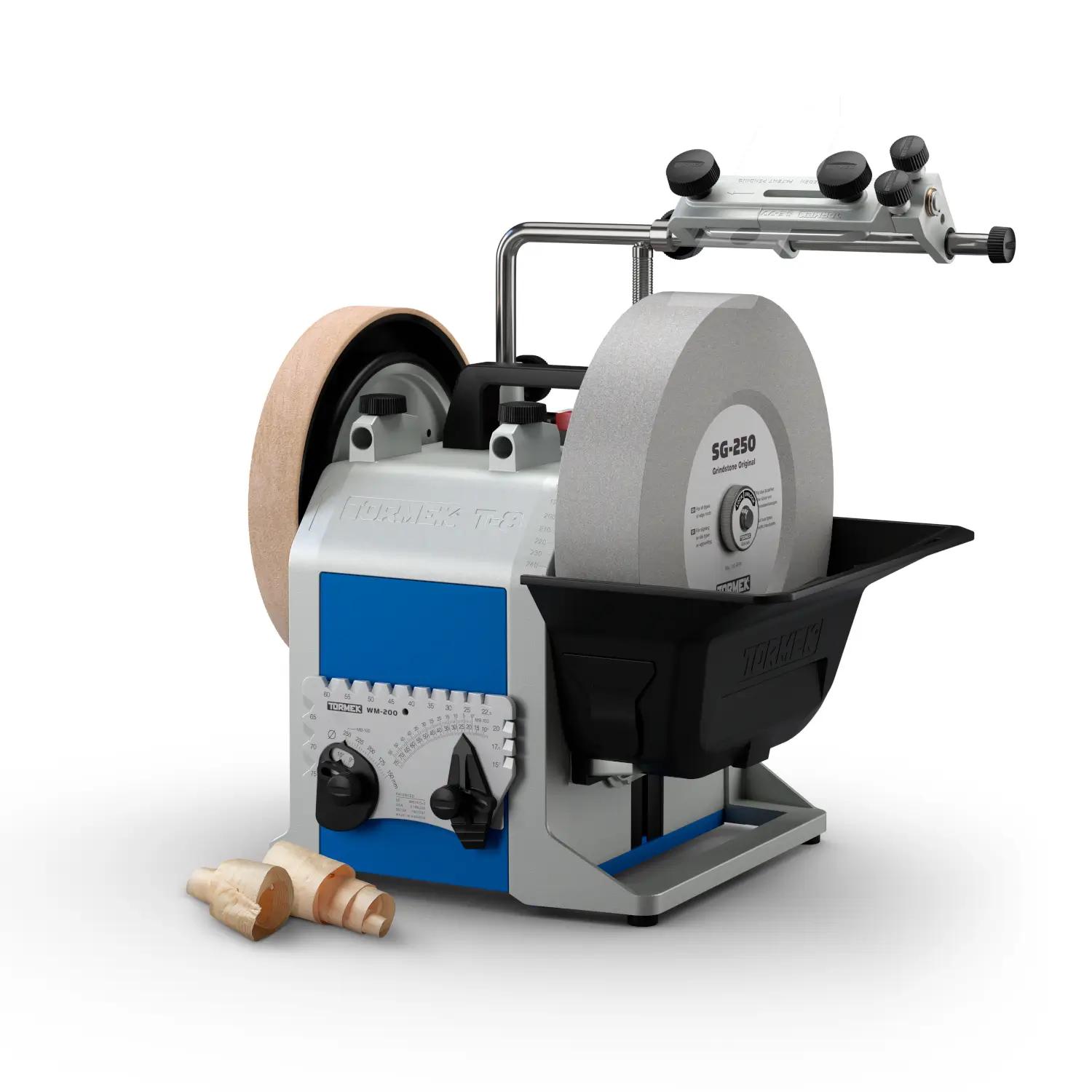

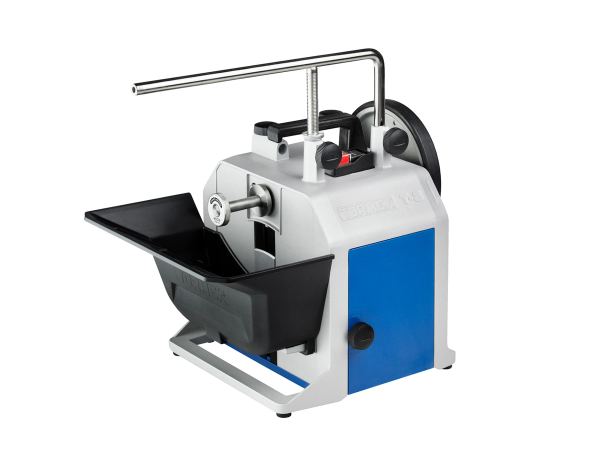

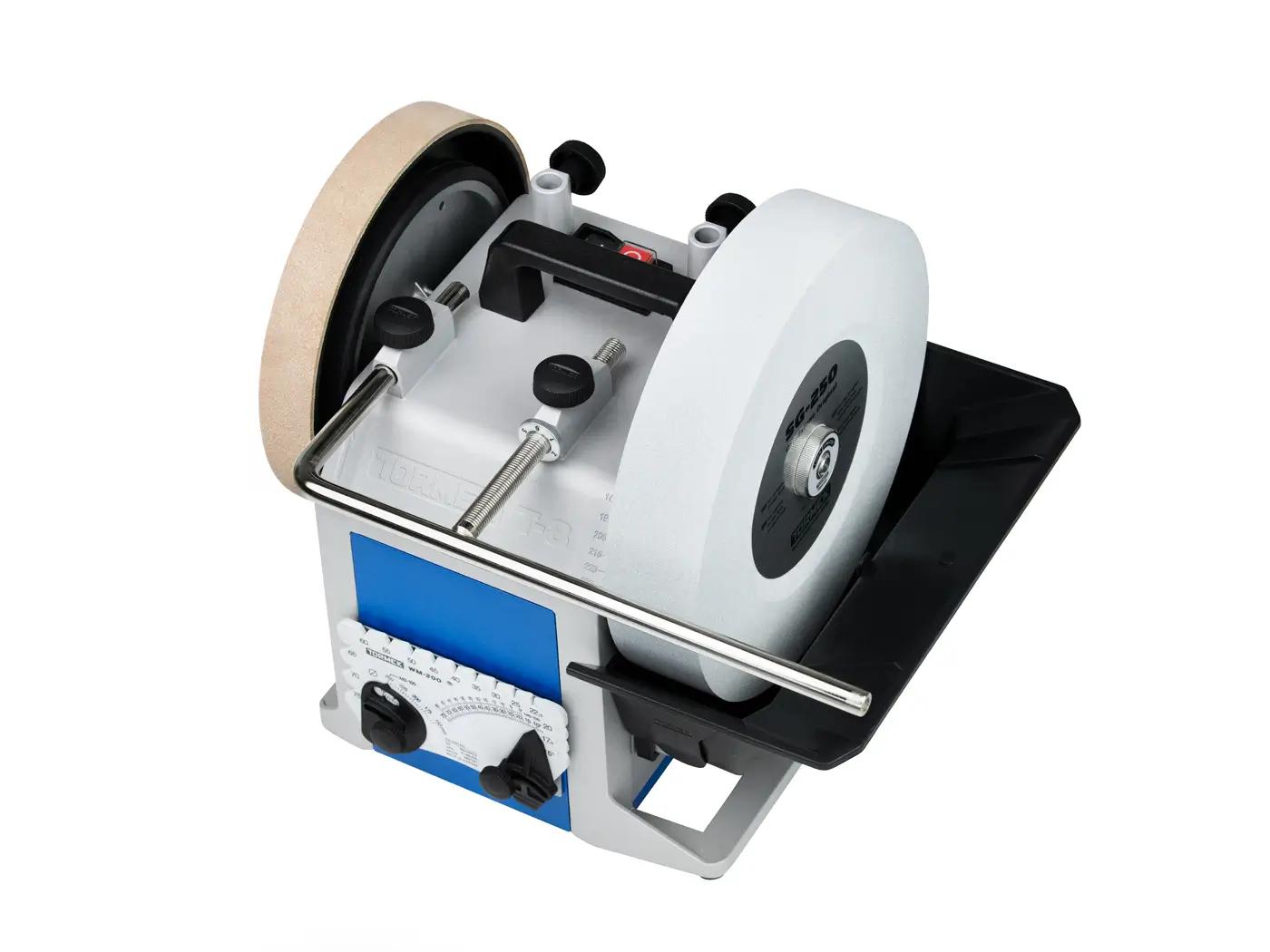

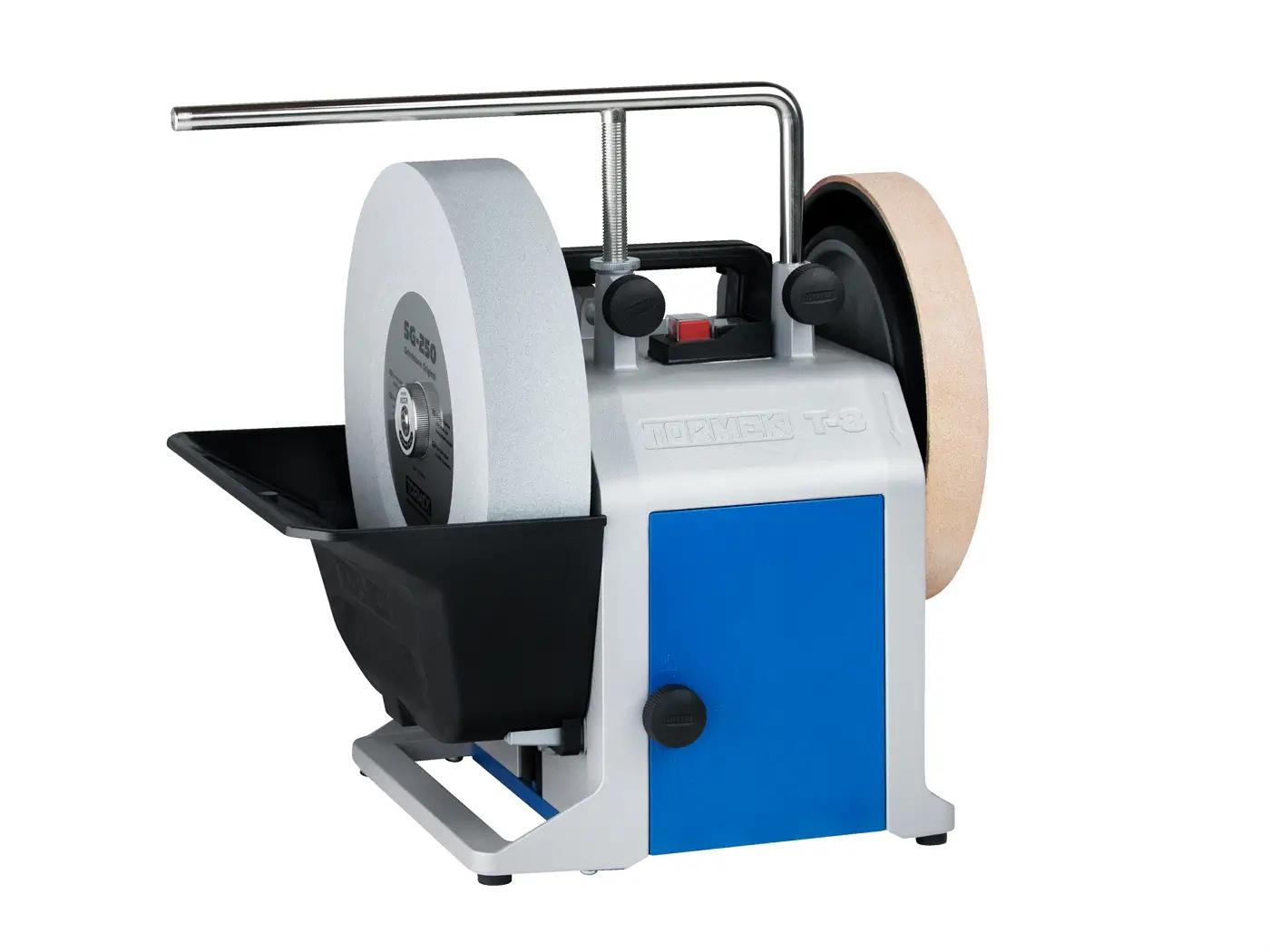

Tormek T-8 Grinding Machine - Water Cooled Sharpening System
The Tormek T-8 Original is a powerful and versatile water-cooled sharpening system that has everything you need to take your sharpening to the next level. The advanced design and its user-friendliness give you the best possible conditions for successful sharpening with top results. The Tormek T-8 Original is ideal for both quality-conscious, enthusiastic amateurs and professionals.
Why the Tormek T-8 Original?
- Sharpens all your edge tools. Add the jigs you need and build the system.
- Water-cooled sharpening with no risk of overheating the steel.
- Exact repeatability– sharpen your tools with unbeatable precision.
- Efficient grindstone with adjustable properties equivalent to 220 to 1000 grit.
- Solid zinc frame with integrated mounts for controllable and accurate sharpening.
- Powerful industrial AC motor for continuous use.
- 8-year warranty, 5 years + 3 years when you register online.
Sharpen with unbeatable precision
The advanced design ensures unbeatable precision for the Universal Support, which is the foundation of the Tormek sharpening system, since it guides all grinding jigs and accessories. The patented precision mounts for the Universal Support are integrated in this model's fully cast machine housing. This gives you full control and maximum accuracy in your sharpening.
The highest quality made in Sweden

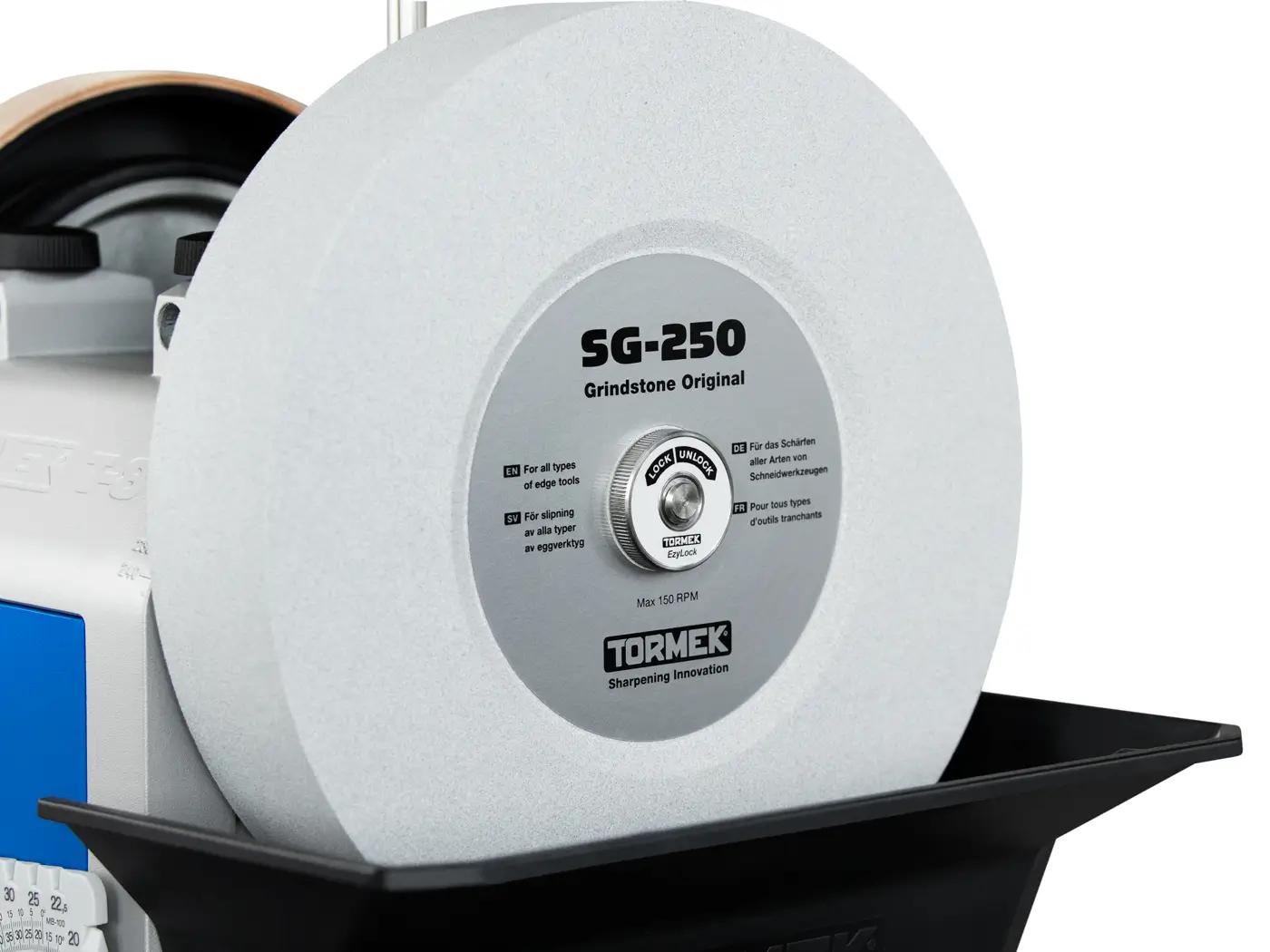

The Tormek T-8 Original comes with the SG-250 Original Grindstone. It has adjustable sharpening properties equivalent to 220 to 1000 grit and sharpens all types of steel grades, including HSS. Tormek's efficient drive system guarantees you many years of quiet and reliable use. The system is built to maintain optimal speed for water-cooled sharpening, even under full load, thanks to its unique drive wheel. The industrial AC motor is maintenance-free and designed to run the full-size grinding wheel for continuous use. The motor is tested for a 25,000 hour service life.
Water trough with screw lift and magnetic scraper
The Tormek T-8 Original is equipped with loads of smart features to make your sharpening easier. For example, the water trough has a convenient screw lift to easily raise and lower the water trough. It also has a double function magnetic scraper: during sharpening, the magnet collects steel particles, and after sharpening, the scraper will make it easy to clean the water trough. For long tools that may drip water outside the water trough (like chef's knives and planer blades), you can easily fit the enclosed water chute onto the edge of the water trough.
EzyLock – quick and easy switching of grinding wheels
Another worked-through detail is the stainless-steel main shaft with Tormek's unique EzyLock nut, which enables tool-free locking and unlocking of the grinding wheel. The EzyLock also makes it easy to change grinding wheels if you work with some of Tormek's special grindstones SB-250 Blackstone Silicon or SJ-250 Japanese Waterstone. Or perhaps one of our diamond grinding wheels?
Packaging dimensions
Width: 393 mm (15 1/2")
Depth: 296 mm (11 5/8")
Height: 383 mm (15 1/8")
Machine dimensions
Width: 270 mm (10 5/8")
Depth: 270 mm (10 5/8")
Height: 330 mm (12")
Weight
Inc. packaging: 18.7 kg (41.3 lbs)
Machine only: 14.8 kg (32.6 lbs)
Color
Blue/gray
Cord length
1.7 m (5' 7")
Housing
Precision-cast zinc stand, powder-coated
Sides made of impact-resistant blue ABS plastic
Grinding wheel
SG-250 Original Grindstone
Aluminum oxide
⌀ 250 * 50 mm (9.84 × 1.97")

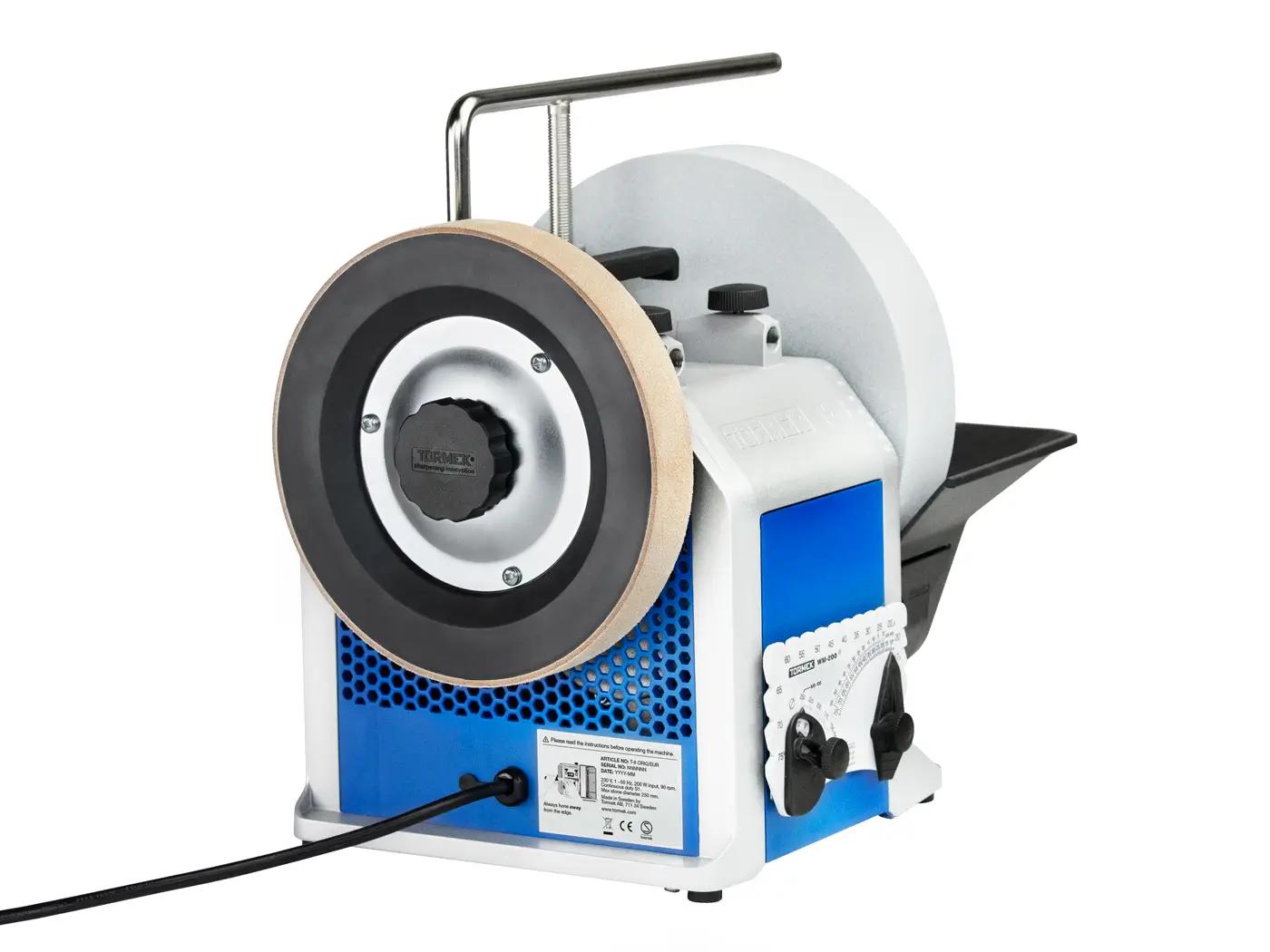

Honing wheel
LA-220 Leather Honing Wheel
Cowhide from Tärnsjö Garveri, ABS plastic
⌀ 220 * 31 mm (8.66 × 1.22")
Drive system
Unique drive system with RKX18 rubber
Self-adjusting for load
Main shaft
MSK-250 Stainless Steel Shaft with EzyLock
Performance
100 rpm
Torque 14.7 Nm
Motor
Industrial motor, single phase, AC
200 W (input), 100-115 V / 220-240 V, 50-60 Hz
Continuous operation
Maintenance-free
Quiet running, 54 dB
25 000 hours of operating time
Warranty
8-year warranty, 5 years + 3 years when you register at tormek.com.
Valid for professional use as well
Documents
Parts breakdown T-8 ENPdf, 1.7 MB.
Material safety data sheet PA-70 ENPdf, 224.8 kB.
Material Safety Data Sheet – Oil for Honing Wheel ENPdf, 111.6 kB.
Patents
To see all patents, please visit tormek.com/patents
