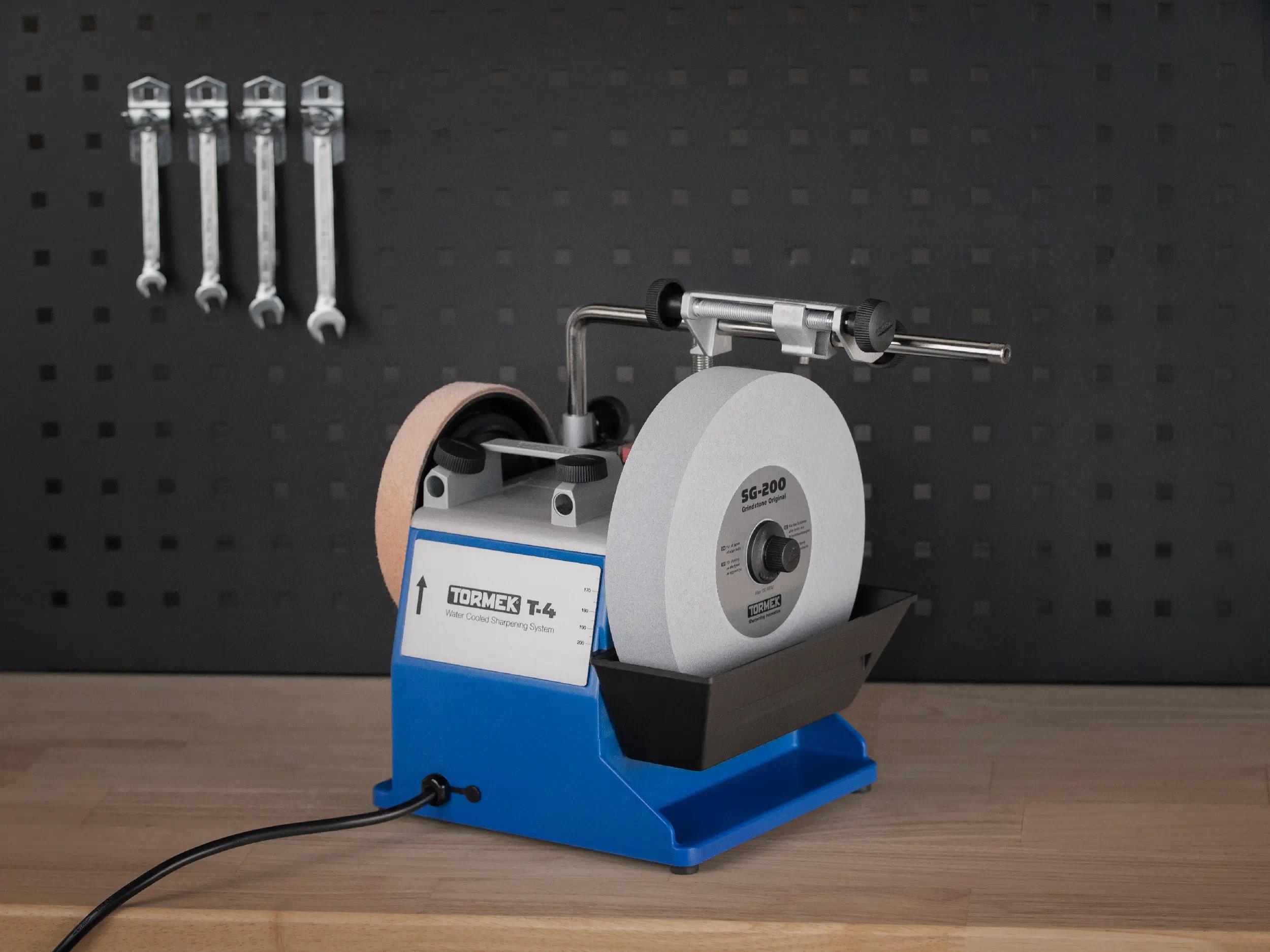

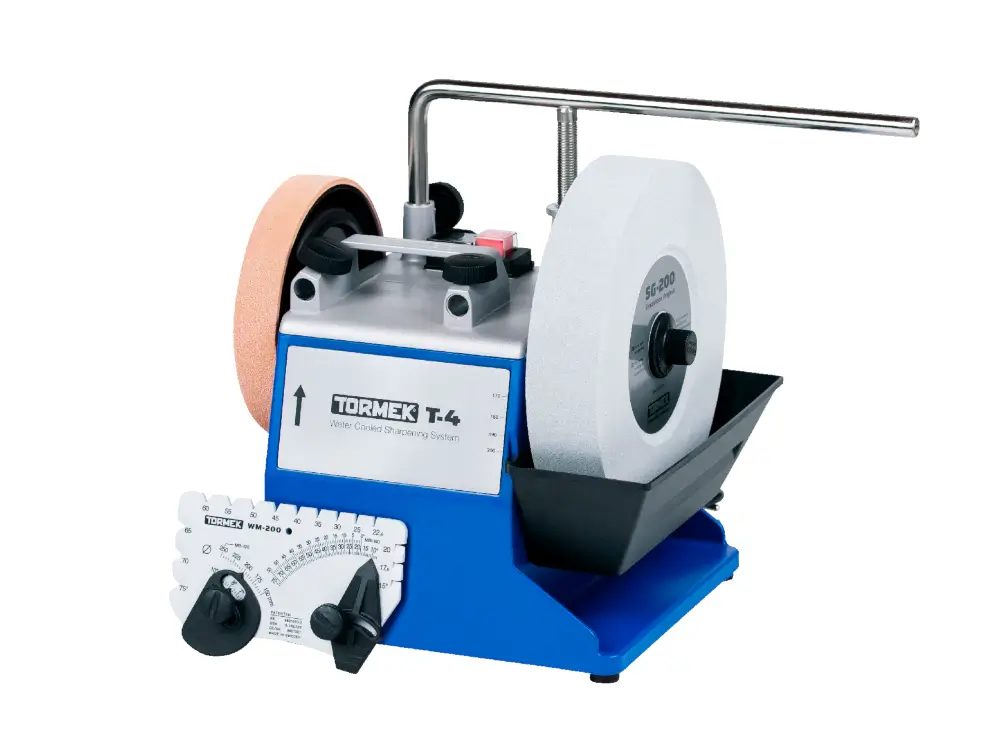

Tormek T-4 Grinding Machine
The Tormek T-4 Original is a compact quality machine that's perfect for home and hobby use, or professionals with limited space. Knives, scissors, lawnmower blades and chisels. Most edge tools you can think of can be made sharper than when they were new with Tormek's comprehensive jig system. The universal support provides precise repeatability, and you achieve razor sharpness with the leather honing wheel.
Why the Tormek T-4 Original?
- Compact water-cooled sharpening system for all your edge tools
- Water-cooled sharpening with no risk of overheating the steel
- Exact replication – sharpen your tools with unbeatable precision
- Efficient grindstone with adjustable properties equivalent to 220 to 1000 grit
- Sturdy, cast zinc top with patented mounts for precise sharpening and full control
- Maintenance-free industrial motor (AC) ensures minimal speed loss even under heavy load
- 8-year warranty, 5 years + 3 years when you register online (for private use)
- Unique drive system with RKX18 rubber drive wheels
- Stainless steel shaft with composite EzyLock for easy replacement of grinding wheels
World-class precision
The Tormek T-4 Original offers the same precision and stability as our larger models, with a compact design. Vital features such as the motor and main shaft are mounted in the cast zinc top, where the patented universal support mounts are also integrated. This design provides unbeatable precision for the universal support, which guides all jigs and accessories.
Compact and versatile

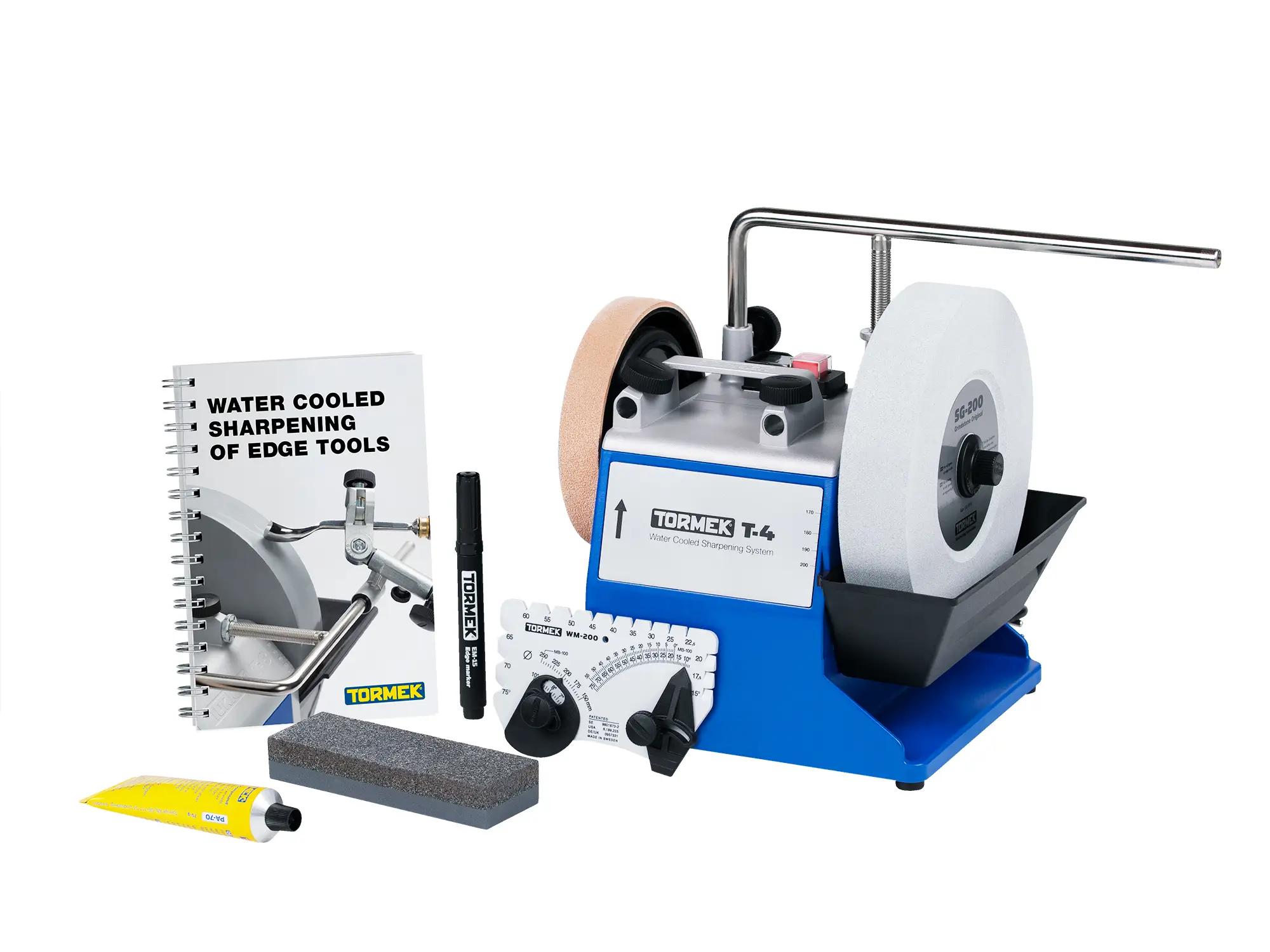

Like the larger machine models, the Tormek T-4 Original comes equipped with Tormek's Original Grindstone. What distinguishes the grindstones between the models is their size. Tormek's SG-200 Original Grindstone is optimized to combine efficient steel removal, a nice finish and a long life span. Using the SP-650 Stone Grader that is included with the machine, you can alternate the surface of the grinding wheel from 220 grit to a surface equivalent to 1000 grit, which provides several characteristics in the same single grinding wheel.
Keeps all tools sharp

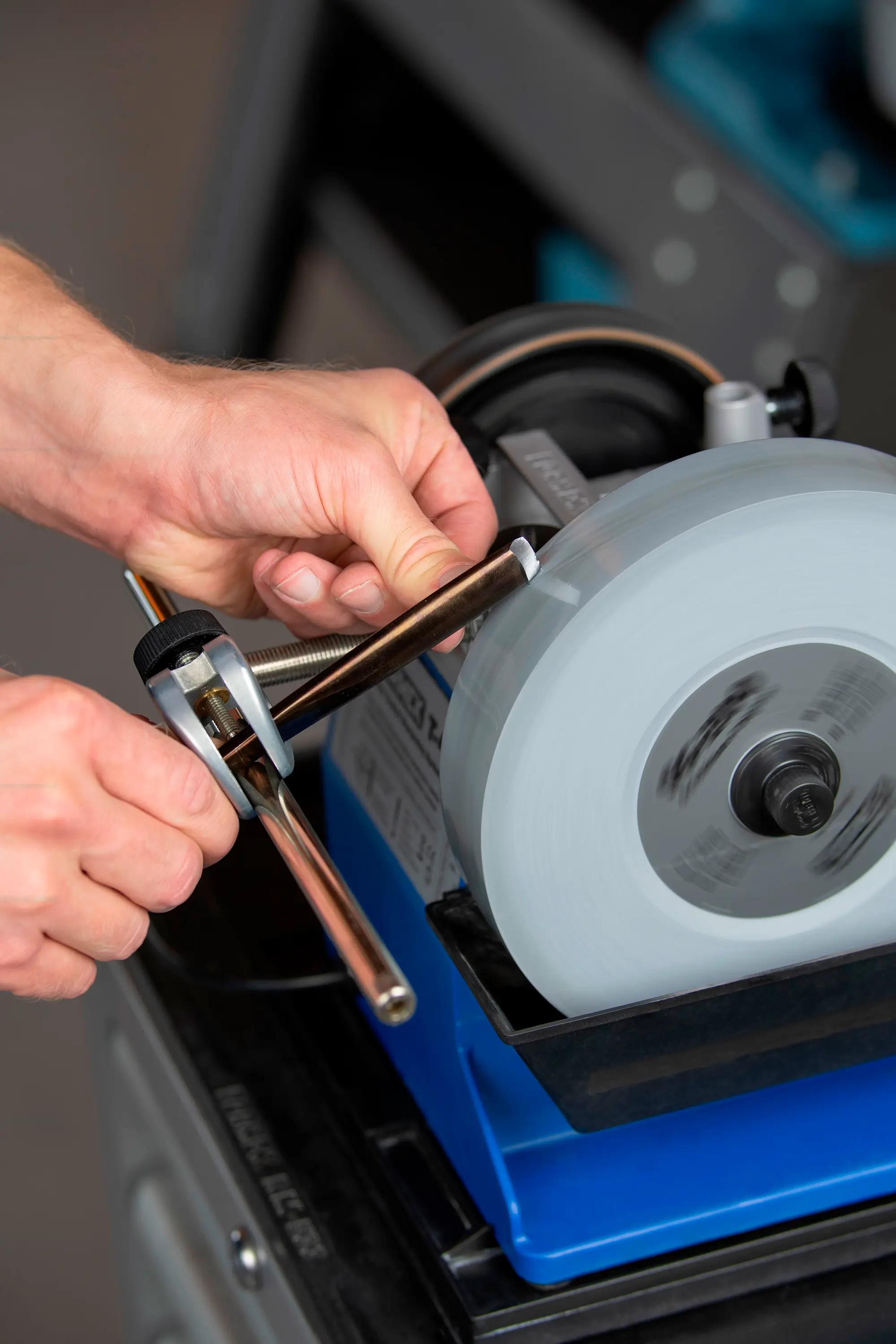

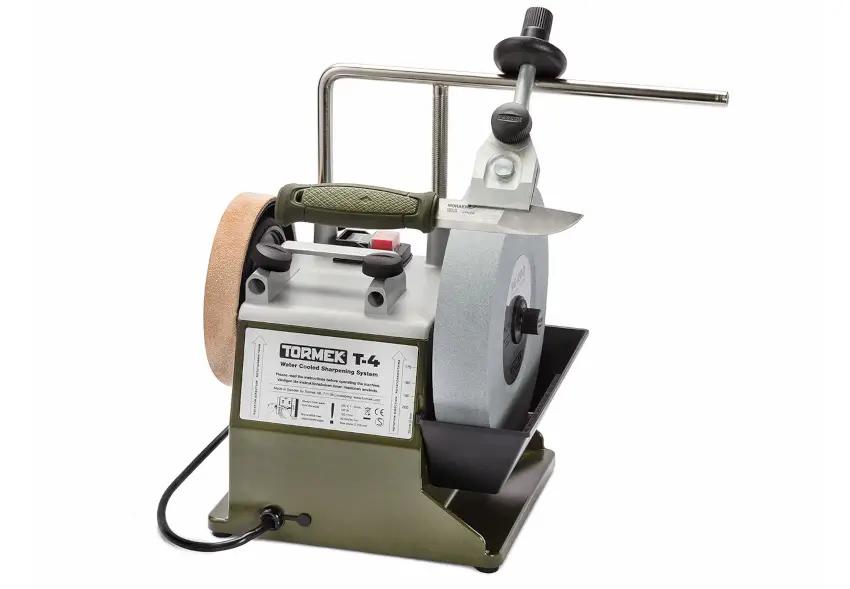

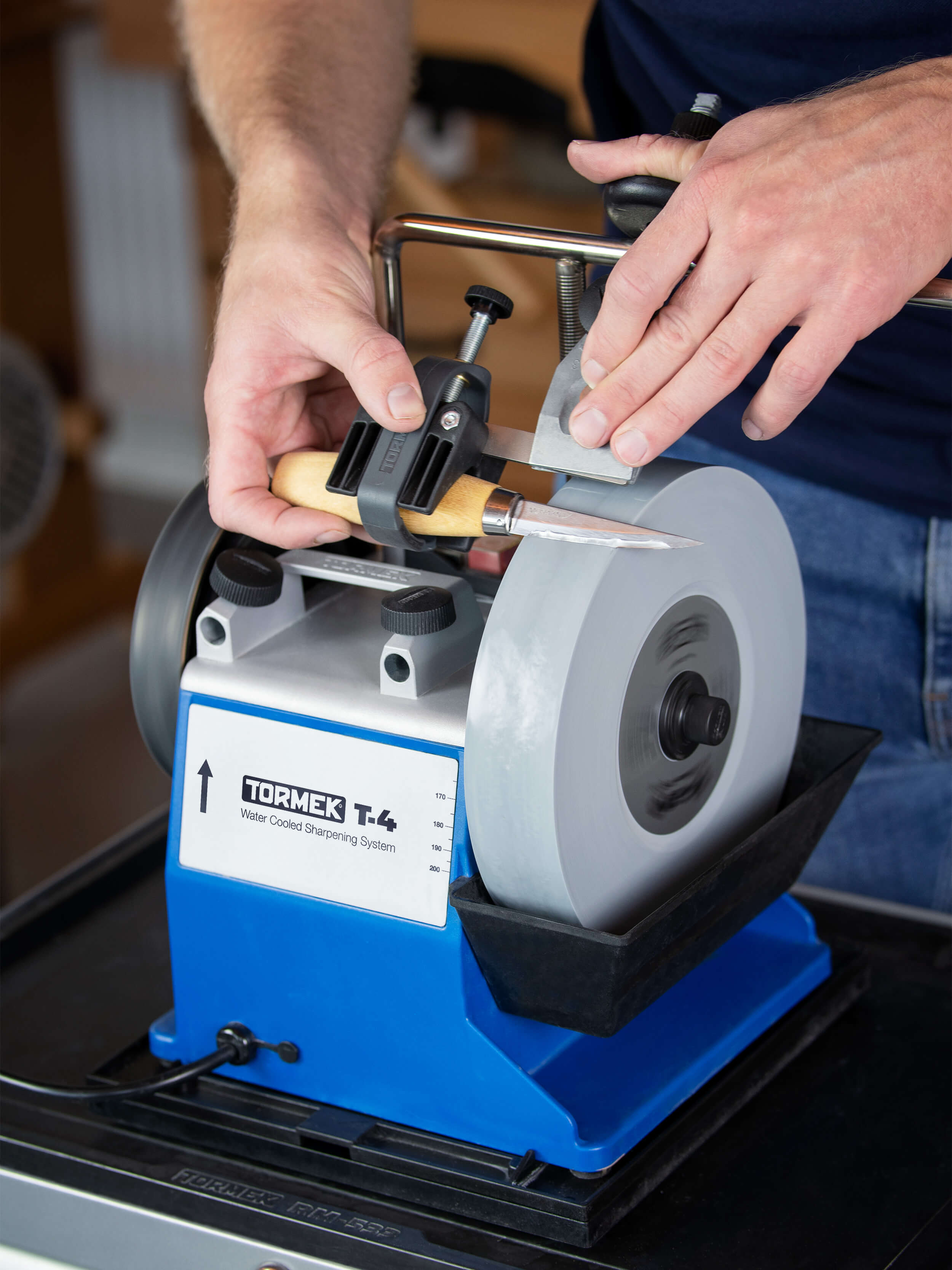

The Tormek T-4 Original is ideal for sharpening chisels, knives, scissors, and smaller tools such as woodcarving tools. It also works well for woodturning tools and drills. We recommend one of Tormek's larger models for sharpening planer blades and moulding knives. Please note that a few types of woodturning gouges can't be honed using the SVD-186 R Gouge Jig on the leather honing wheel due to the compact design of the Tormek T-4 Original. These tools can be honed freehand instead.
Packaging dimensions
Width: 325 mm (12¾")
Depth: 235 mm (9¼")
Height: 257 mm (10 1/8")
Machine dimensions
Width: 240 mm (9 7/16")
Depth: 205 mm (8 1/16")
Height: 260 mm (10¼")
Weight
Inc. packaging: 9.8 kg (21.6 lbs)
Machine only: 8 kg (17.6 lbs)
Color
Blue/gray
Cord length
1.7 m (5' 7")
Material
Precision-cast zinc top, powder-coated
Impact-resistant blue ABS plastic
Grinding wheel
Aluminum oxide
Ø 200 × 40 mm (7.87 × 1.57")
Honing wheel
Cowhide from Tärnsjö Garveri, ABS plastic.
Ø 145 × 26 mm (5.71 × 1.02")
Drive system
Unique drive system with RKX18 rubber
Self-adjusting for load
Main shaft
MSK-200 Stainless Steel Shaft with EzyLock
Performance
120 rpm
Torque 8.4 Nm
Motor
Industrial motor, single phase, AC
120 W (input), 100-115 V / 220-240 V, 50-60 Hz
Continuous operation
Maintenance-free
Quiet running, 54 dB
10 000 hours of operating time
Warranty
8-year warranty*, 5 years + 3 years when you register at tormek.com
* The warranty for the Tormek T-4 Original is 2 years when used for commercial, industrial, or educational purposes
Documents
Parts breakdown T-4 ENPdf, 226.1 kB.
Material safety data sheet PA-70 ENPdf, 224.8 kB.
Material Safety Data Sheet – Oil for Honing Wheel ENPdf, 111.6 kB.
